Atlas Platinum PVL15 15,000 lb Heavy Duty 2-Post Lift
USD 9,100
USD 13,000
Description
Atlas® Platinum PVL15 – ALI Certified 15,000 lb. Capacity Commercial 2-Post Lift
The Atlas® Platinum PVL15 is a commercial-grade, ALI Certified two-post lift engineered for heavy-duty performance and professional use. With a 15,000 lb. lifting capacity, it’s designed to handle everything from long wheelbase pickup trucks to large service vehicles with ease and precision.

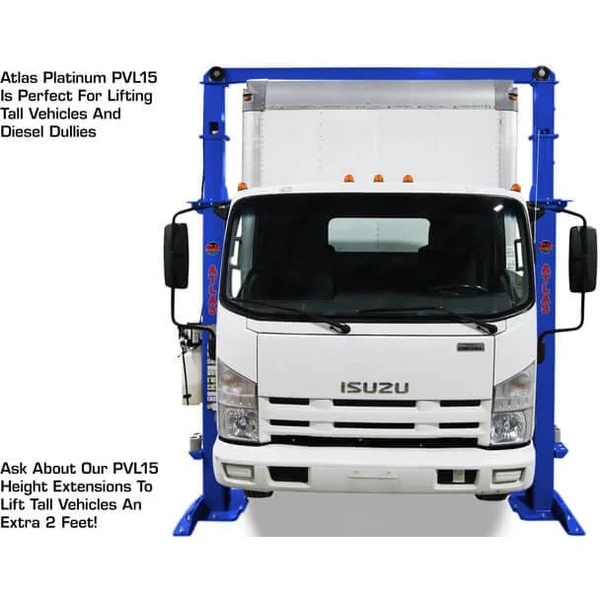

Standing at 174 ½″ (14′ 6 ½″) in standard configuration, the PVL15 can be upgraded with an optional Height Extension Kit to provide an additional 2 feet of clearance, making it ideal for servicing taller vehicles. Built for reliability, power, and smooth operation, this lift is a top choice for high-volume repair shops and fleet service centers.

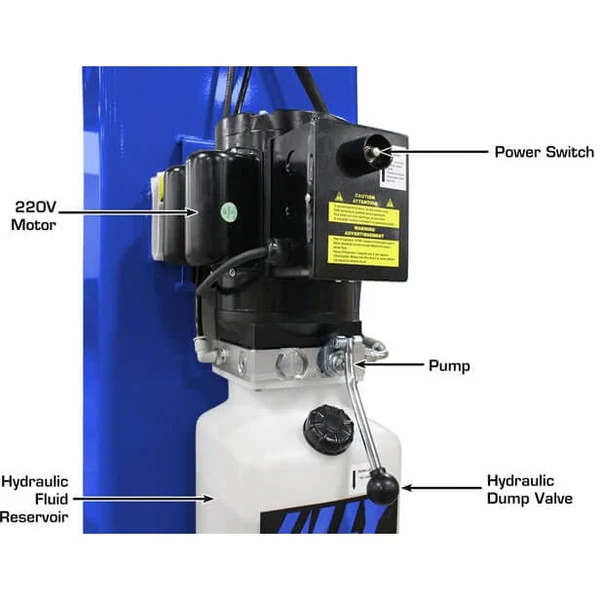

At the heart of the PVL15 is the ALLY Hydraulic AL2300 Power Unit, a premium-grade system certified by MET Laboratories Inc. for electrical compliance in both the U.S. and Canada. It features heavy-duty armatures and enhanced silver-infused motor windings, minimizing heat buildup and ensuring consistent torque throughout the lift cycle. The ALLY power unit is backed by an industry-leading two-year limited warranty, guaranteeing professional-level performance and longevity.
Combining advanced engineering, superior build quality, and ALI-certified safety, the Atlas® Platinum PVL15 is the ultimate solution for professionals who demand dependable lifting capability and exceptional versatility.
Key Features
ALI Certified Lift for verified safety and performance
15,000 lb. Lifting Capacity
Heavy-Duty, Commercial-Grade Construction
Extra-Tall and Extra-Wide Design accommodates larger vehicles
Overall Height: 174 ½″ (14′ 6 ½″) (extendable with optional Height Extension Kit)

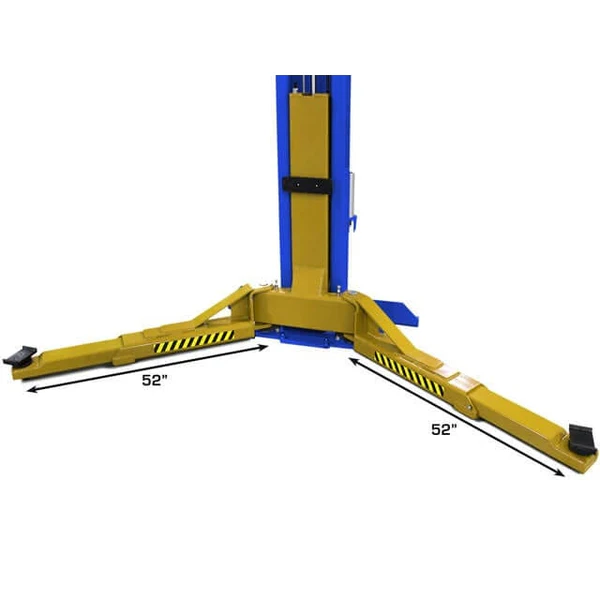

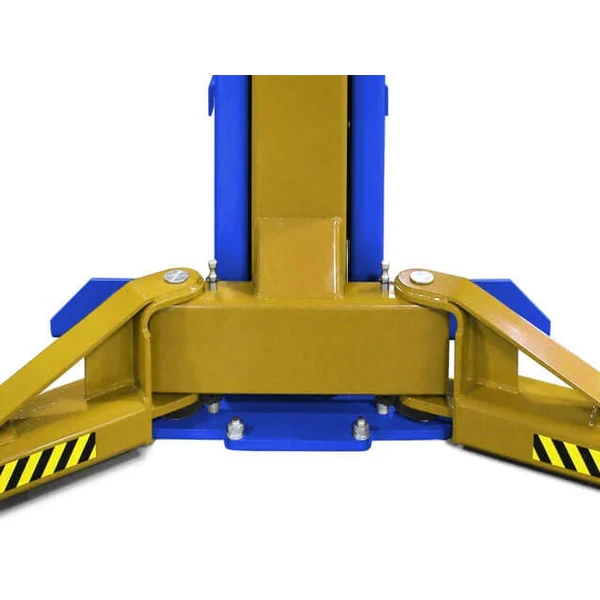

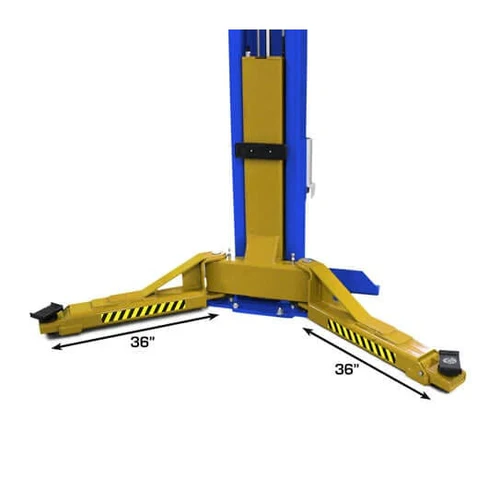

Symmetric Arm Configuration for balanced lifting of large trucks and vans
Padded Carriages protect vehicle doors and body panels
Professional-Grade Arm Lock Restraint System for operator safety
Dual Direct-Drive Hydraulic Cylinders provide smooth, efficient lift motion

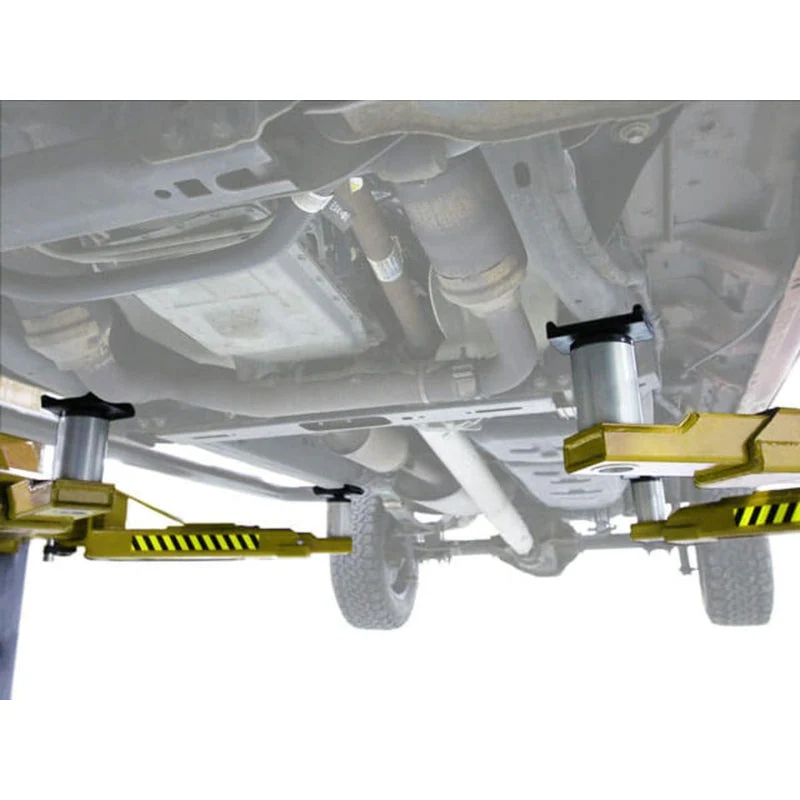

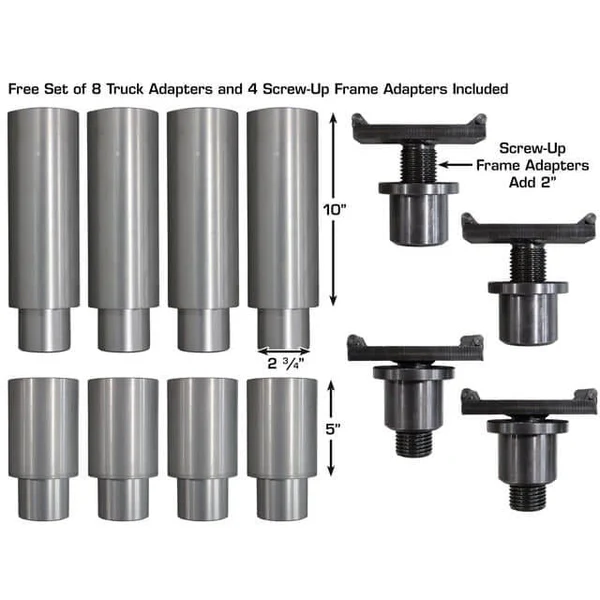

Includes Free 8-Piece Truck Adapter Set and 4 Screw-Up Frame Adapters

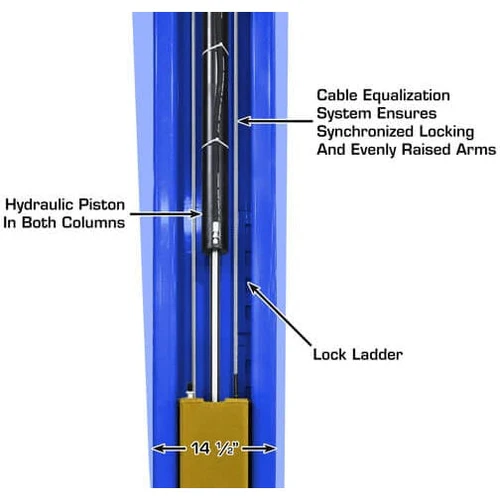

Heavy-Duty 3/8″ Equalization Cables for precise synchronization
Standard with Premium ALLY Hydraulic Power Unit
Mounting Hardware Included

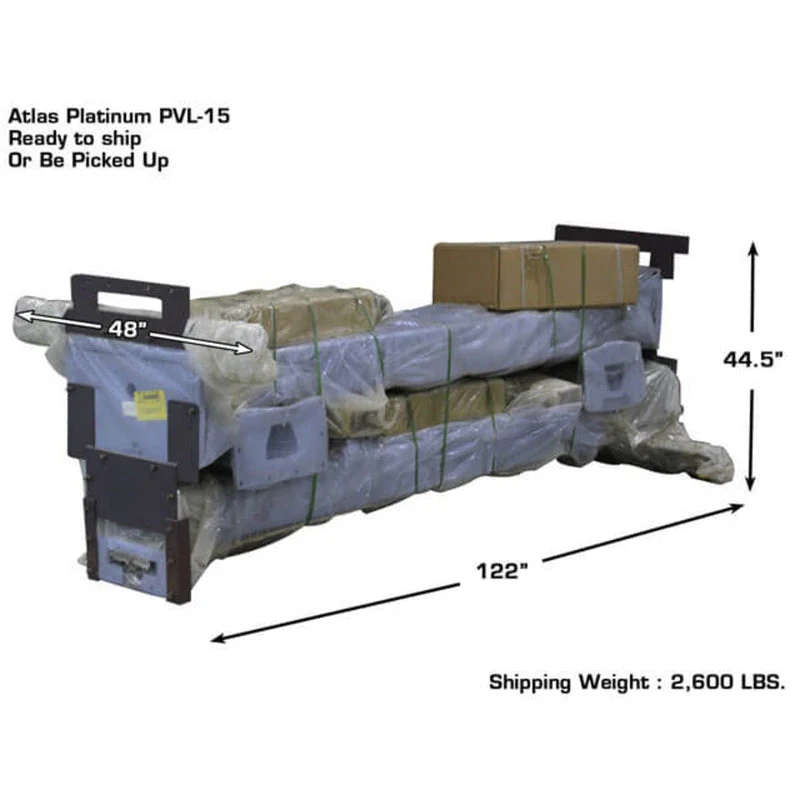

Shipping Weight: 2,600 lb.
Warranty: 5-Year Structural | 2-Year Hydraulic | 2-Year Power Unit
Specifications
SpecificationMeasurement
| Lifting Capacity | 15,000 lb. |

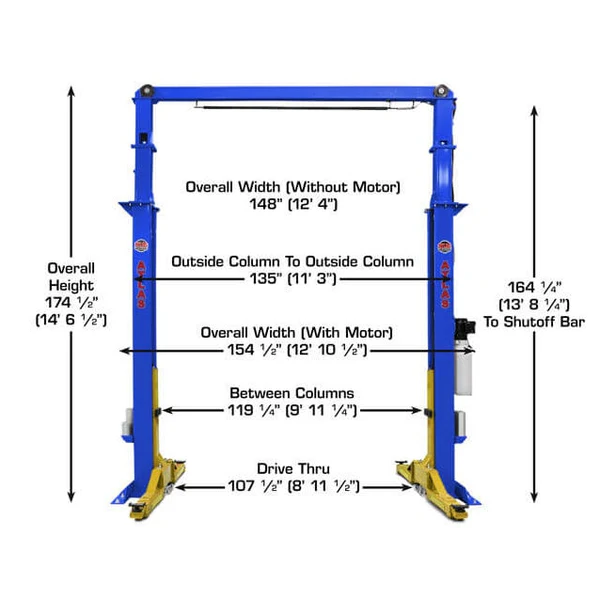

| Overall Height | 174 ½″ (14′ 6 ½″) |
| Overall Floor Width | 148″ (12′ 4″) |
| Outside Column to Outside Column | 135″ (11′ 3″) |

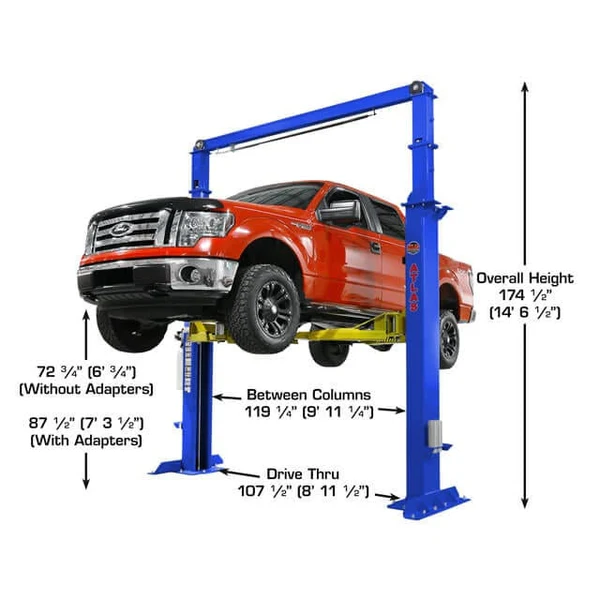

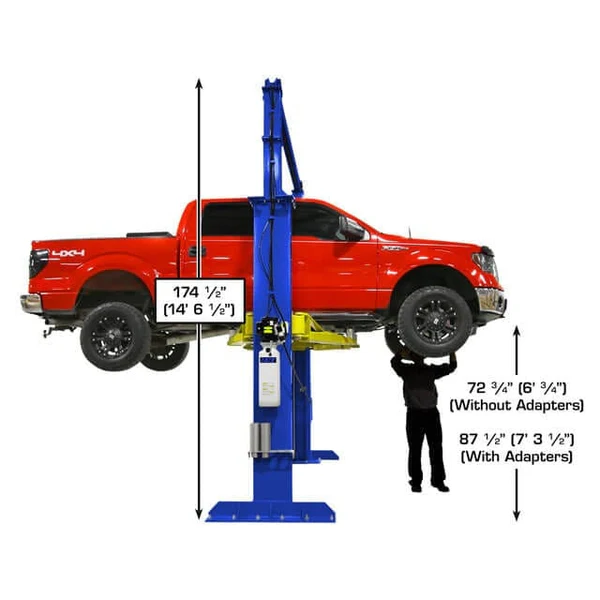

| Maximum Lift Height (Without Adapters) | 72 ¾″ |
| Maximum Lift Height (With Adapters) | 87 ½″ |
| Minimum Arm Height | 6″ |
| Inside Column Width | 119 ¼″ (9′ 11 ¼″) |
| Drive-Through Clearance | 107 ½″ (8′ 11 ½″) |
| Column Size | 8″ × 14 ½″ |
| Column Steel Thickness | 8 mm |

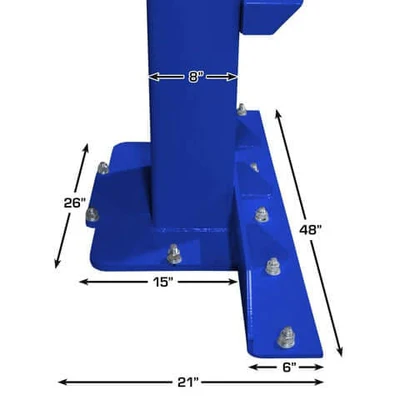

| Base Plate Dimensions | 21″ × 48″ |
| Electrical Requirement | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |
| Shipping Weight | 2,600 lb. |

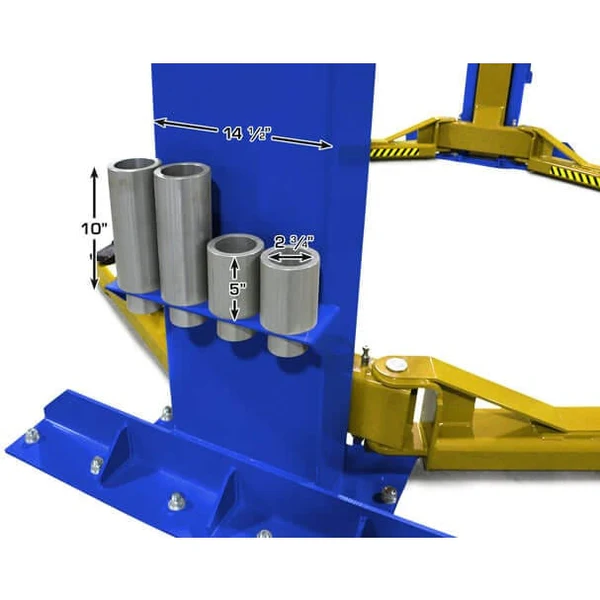

| Adapter Heights | Four each: 5″ and 10″ |
| Arm Hole/Adapter Peg Size | 2.75″ |
| Concrete Requirement | Minimum 6″ thick slab rated at 3,000 PSI |
