Description

Atlas® PV12PX – 12,000 lb. Capacity Extra-Tall, Extra-Wide Commercial 2-Post Lift

The Atlas® PV Series delivers unbeatable value for those who demand a heavy-duty, professional-grade two-post lift at an exceptional price. With over a decade of proven reliability and thousands of lifts in operation worldwide, the PV Series is celebrated for its strength, durability, and performance — often described as “bulletproof,” “tough as nails,” and “built to last.”

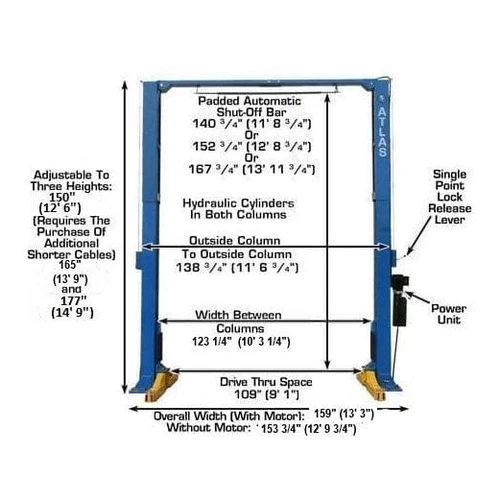

The Atlas® PV12PX is a commercial-grade lift engineered to handle everything from standard passenger cars to long-wheelbase trucks and commercial vehicles. Thanks to its low pad height, the PV12PX can safely lift smaller vehicles, while its extra-tall, wide-column design easily accommodates larger trucks and vans. The 123″ space between columns and 109″ drive-through clearance provide ample room for wide vehicles, including those with oversized mirrors or extended bodies.

Its longer symmetrical arms and included peg-style truck adapter set make it ideal for long-wheelbase vehicles with various running board configurations. The increased column height provides additional clearance for vans, service vehicles, and box trucks, giving operators the flexibility to work safely and efficiently on a diverse range of vehicles.

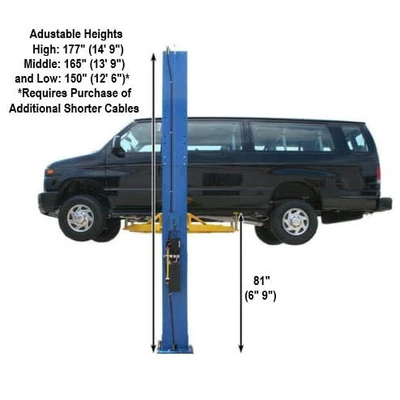

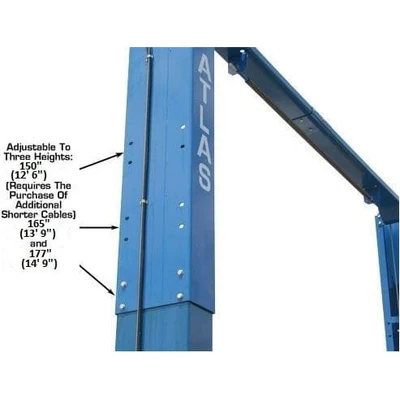

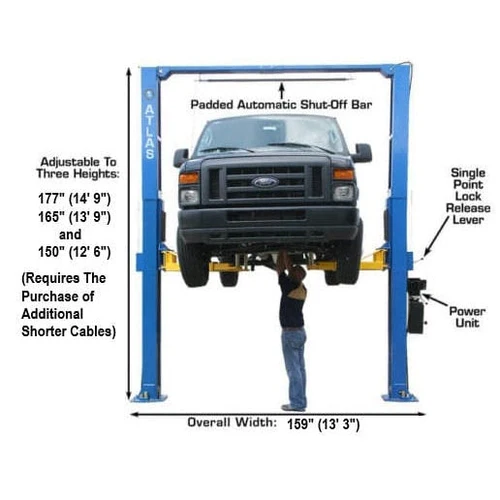

The Atlas® ATEXH-PV12PX offers three adjustable height configurations — 150" (12′ 6″), 165" (13′ 9″), and 177" (14′ 9″). The 150" low-ceiling option requires optional short cables, making this model adaptable to a variety of shop environments.

Built for commercial performance and longevity, the Atlas® PV12PX combines strength, versatility, and safety — making it an ideal lift for professional service centers, fleet garages, and serious automotive enthusiasts.

Key Features

• 12,000 lb. Lifting Capacity

• Extra-Tall and Extra-Wide Commercial-Grade Construction

• Adjustable Height Options: 150" (12′ 6″), 165" (13′ 9″), or 177" (14′ 9″)

• Low Height Option: 150" (12′ 6″) (requires purchase of short cables)

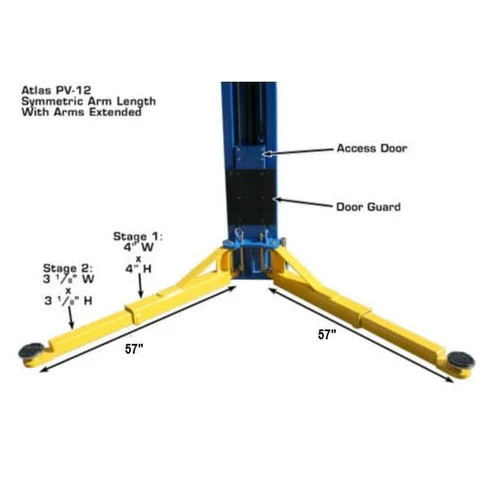

• Symmetric Arm Design for balanced vehicle lifting

• Automatic Arm Restraints ensure secure operation

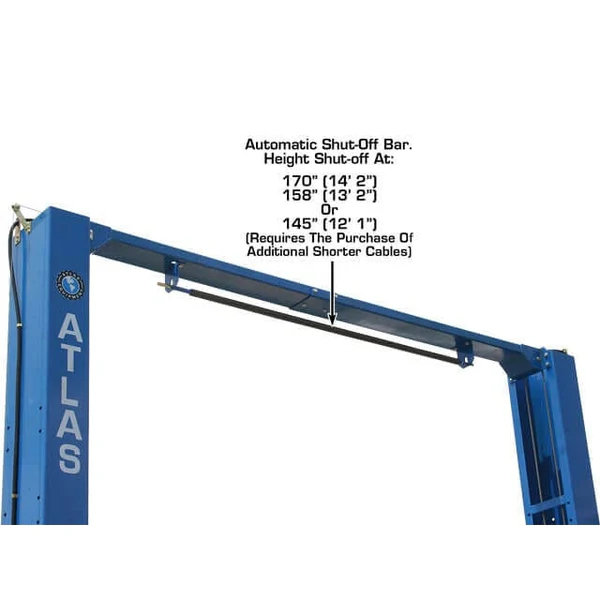

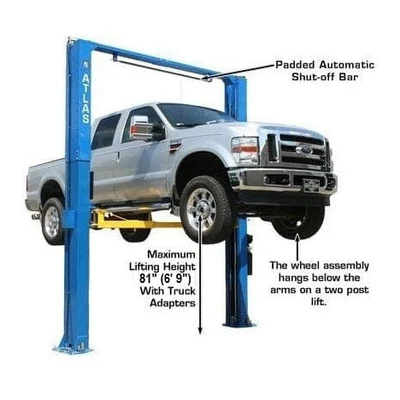

• Padded Overhead Shut-Off Bar prevents vehicle contact with crossbeam

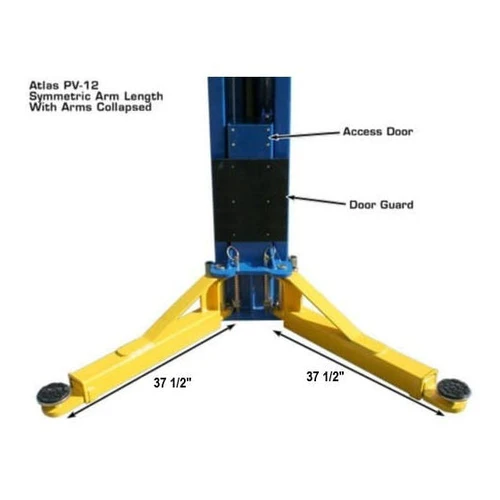

• Door Guards on Carriages protect vehicle doors from impact

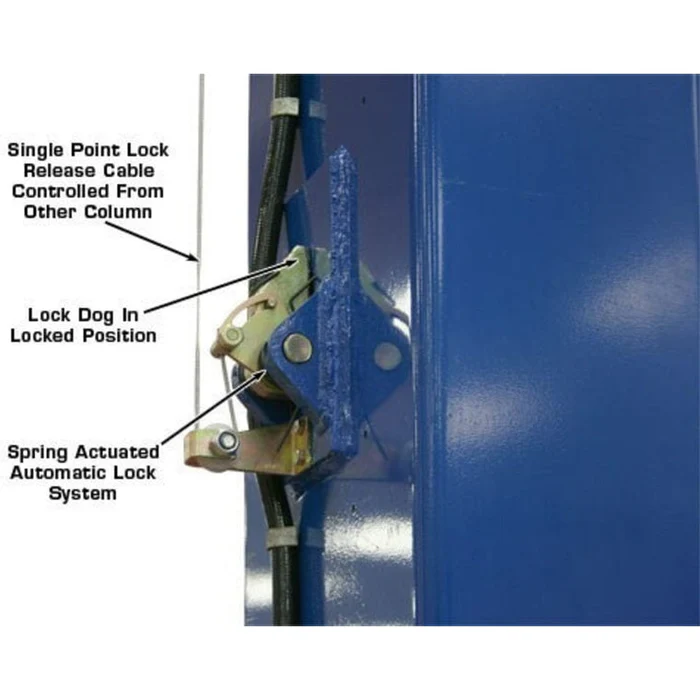

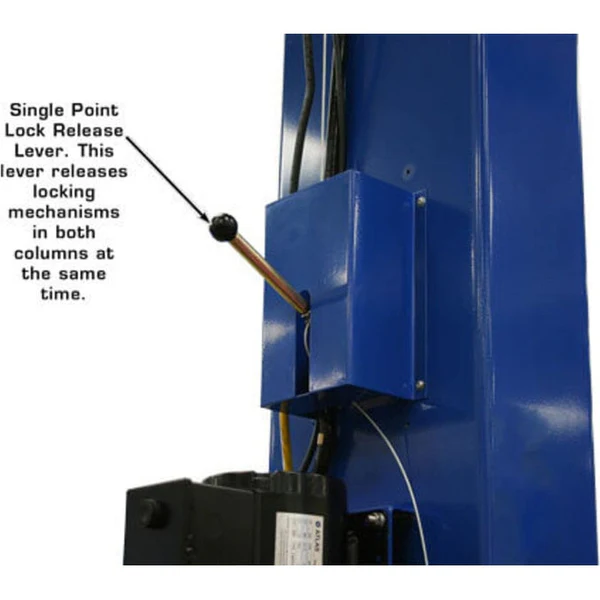

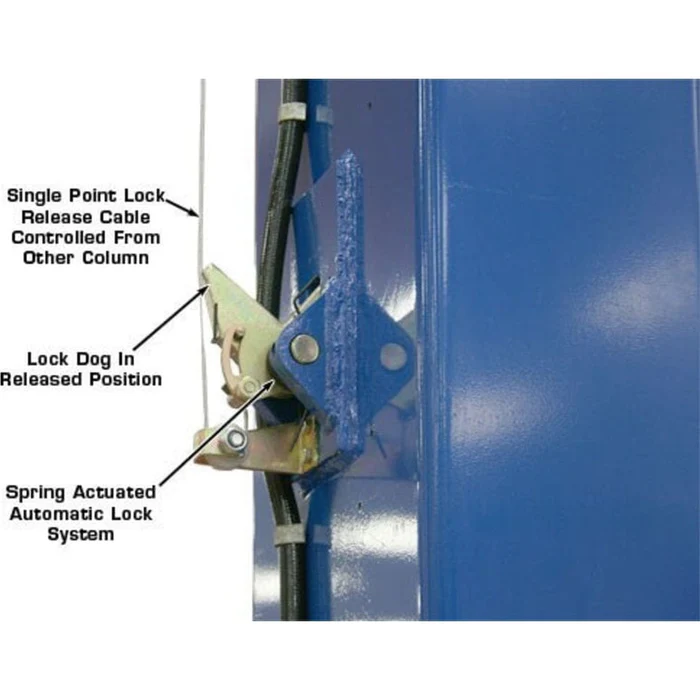

• Single-Point Lock Release for smooth, easy operation

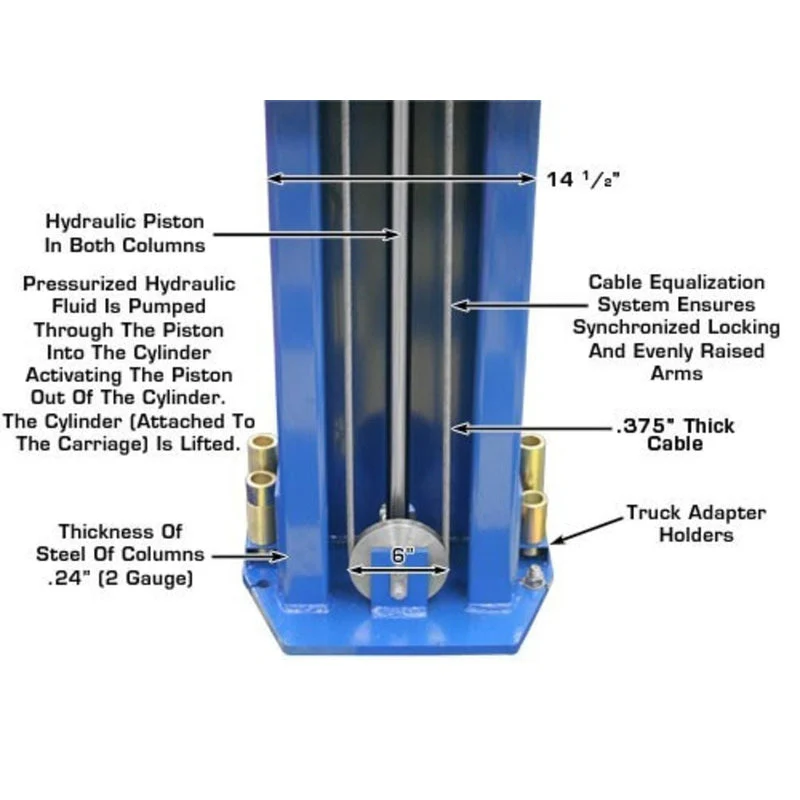

• Direct-Drive Hydraulic Cylinders for consistent performance

• Durable Powder-Coated Finish

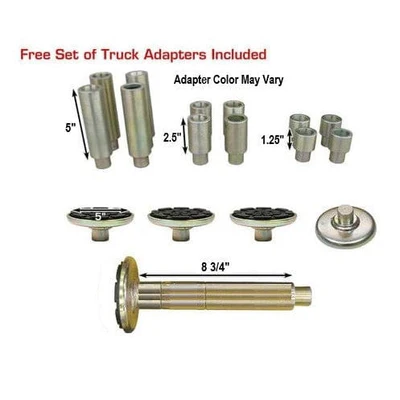

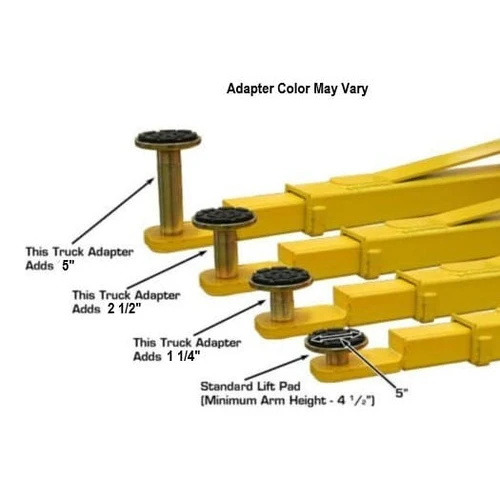

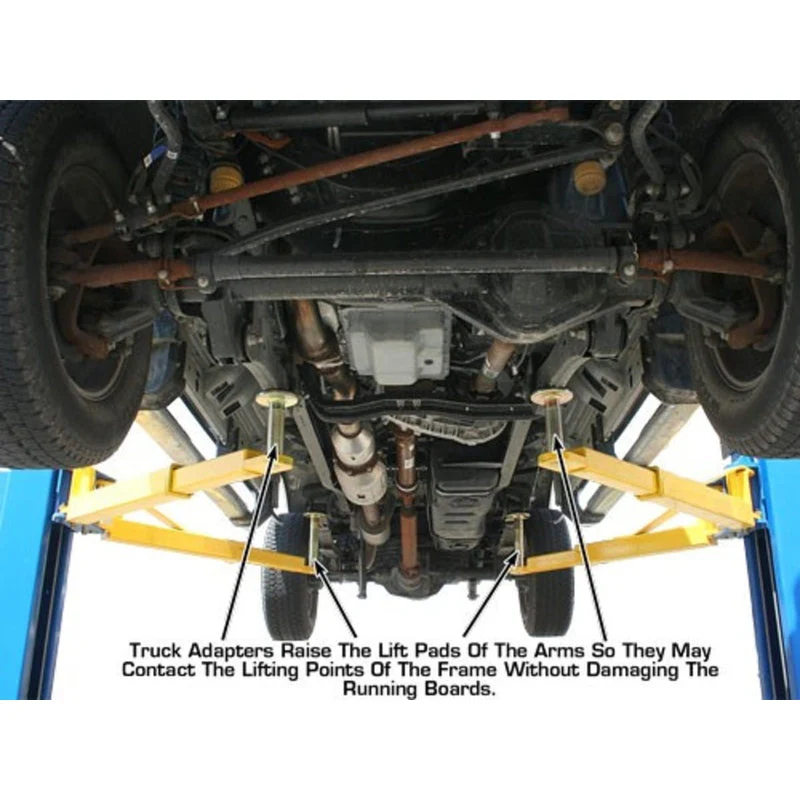

• Free 12-Piece Truck Adapter Set (Included)

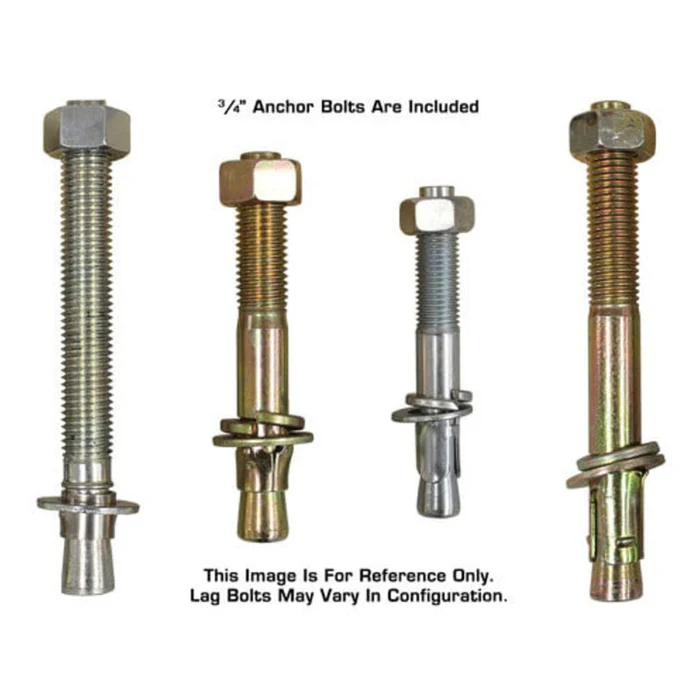

• Mounting Hardware (Included)

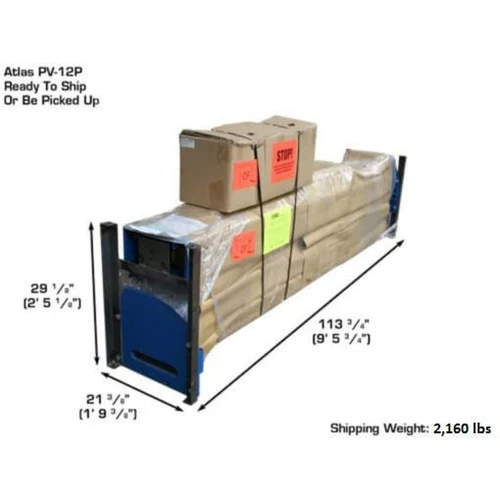

• Shipping Weight: 2,160 lb.

• Warranty: 5-Year Structural | 2-Year Hydraulic | 1-Year Power Unit (Parts Only)

Specifications

SpecificationMeasurement
