Katool KT-4H110 11,000lbs 4 Post Lift (Voltage: 110v)
USD 2,309
USD 3,299
Voltage: 110v
Overview

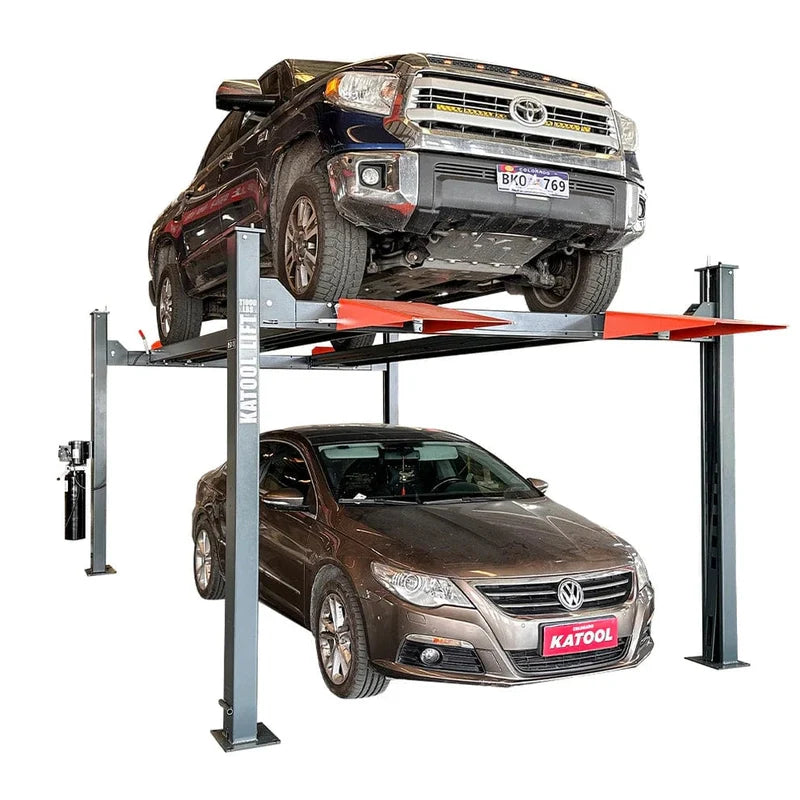

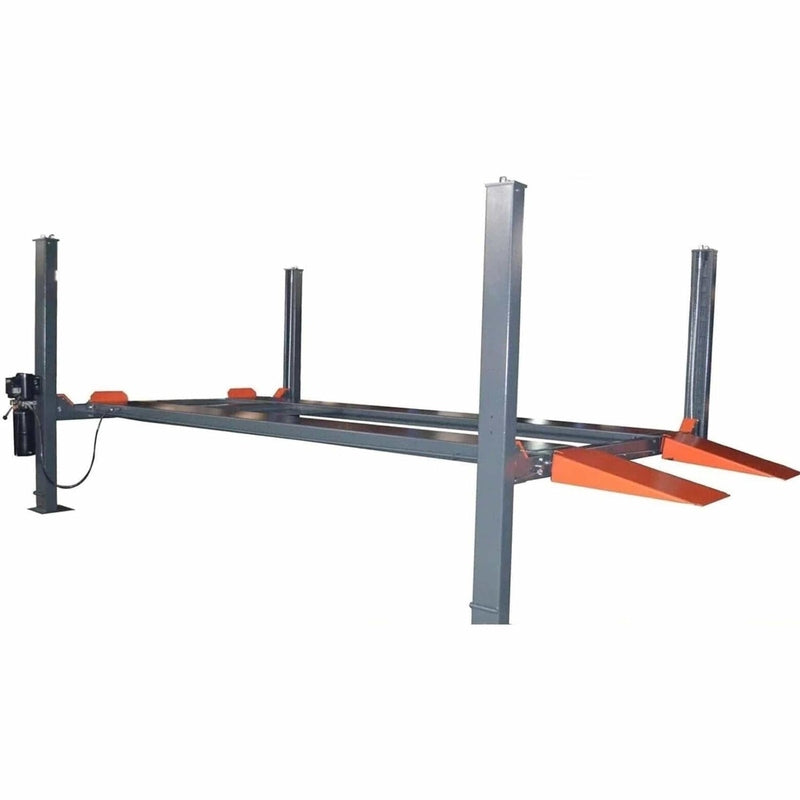

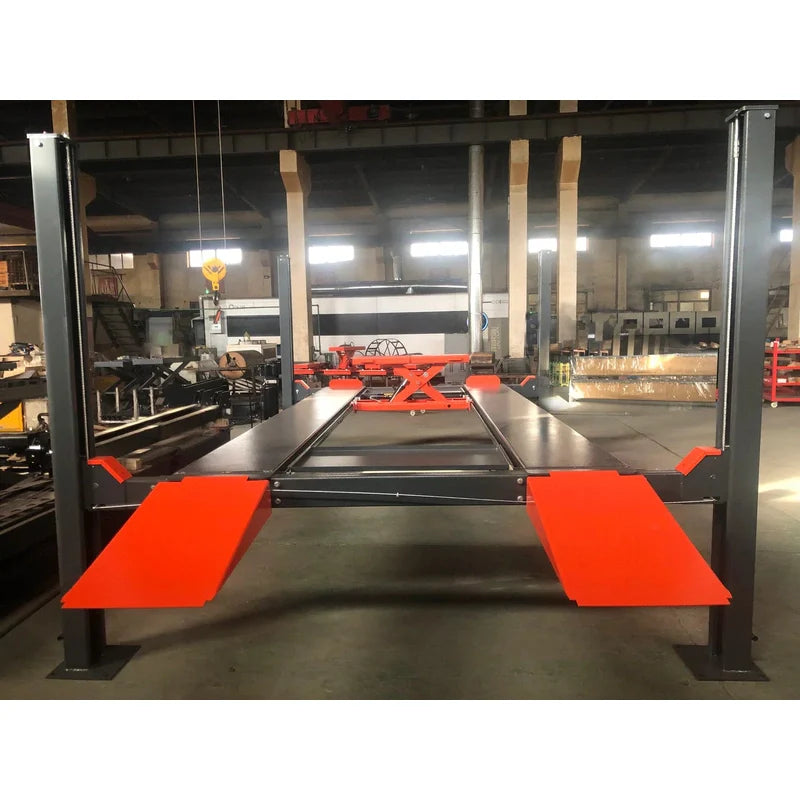

The Katool KT-4H110 Four-Post Vehicle Lift is a powerful, heavy-duty lifting solution designed for professional garages and workshops. With an 11,000 lbs lifting capacity, this CE-approved and certified lift meets the highest safety standards, successfully passing 115% dynamic and 150% static load capacity tests. Built for performance, safety, and reliability, it’s the perfect choice for demanding vehicle lifting applications.
Equipped with a single-point manual safety lock release and four mechanical locking devices featuring both primary and secondary safety locks, the KT-4H110 ensures safe and stable operation every time. Its non-skid diamond platforms provide superior traction, while the adjustable safety lock ladders allow flexible positioning for different vehicle types. The power-side column design offers versatile installation options, allowing you to optimize your workspace layout with ease.

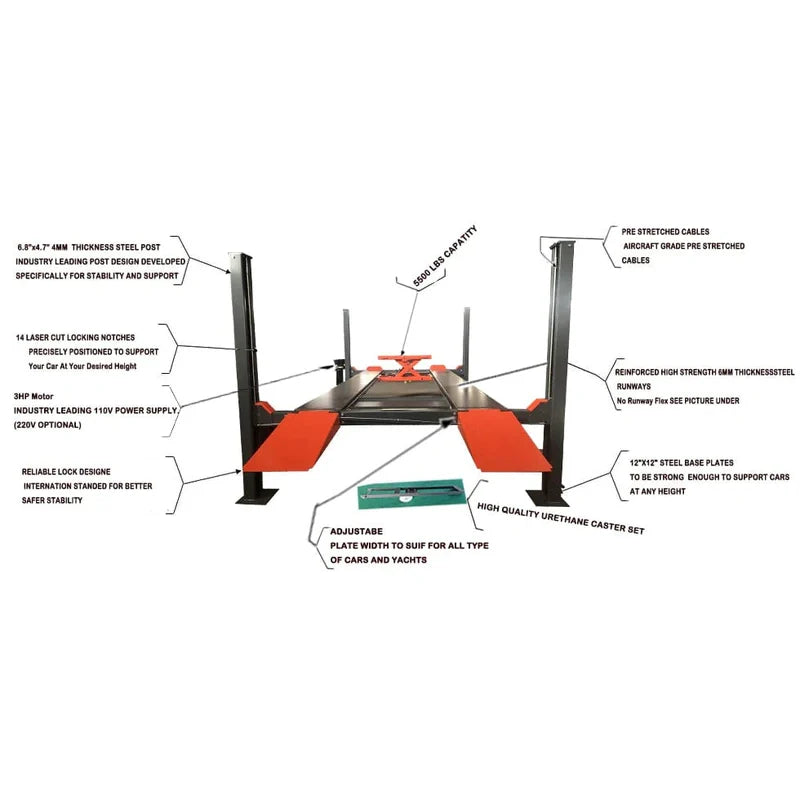

Key Features
11,000 lbs Lifting Capacity: Capable of safely lifting heavy-duty vehicles with outstanding stability and performance.
CE Approved and Certified: Rigorously tested to meet 115% dynamic and 150% static load capacity standards for enhanced safety and reliability.

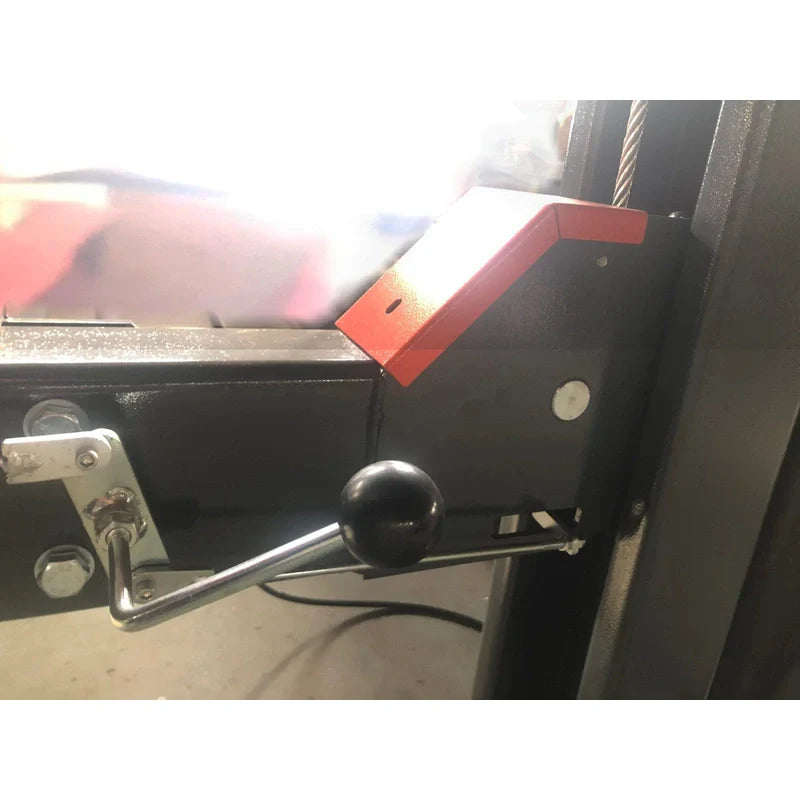

Single-Point Manual Safety Lock Release: Provides smooth, secure, and controlled lifting and lowering operations.

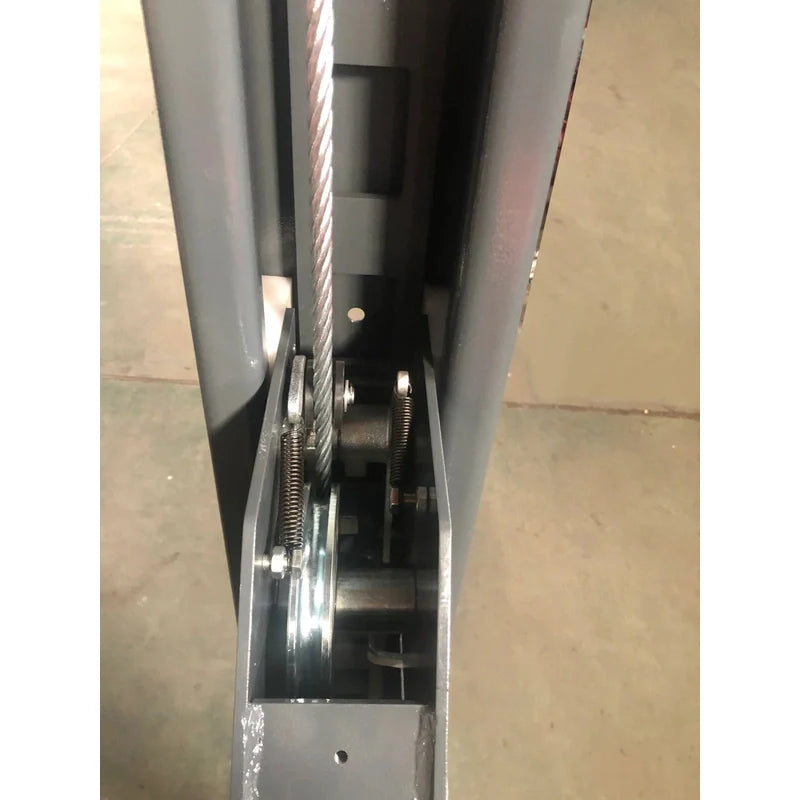

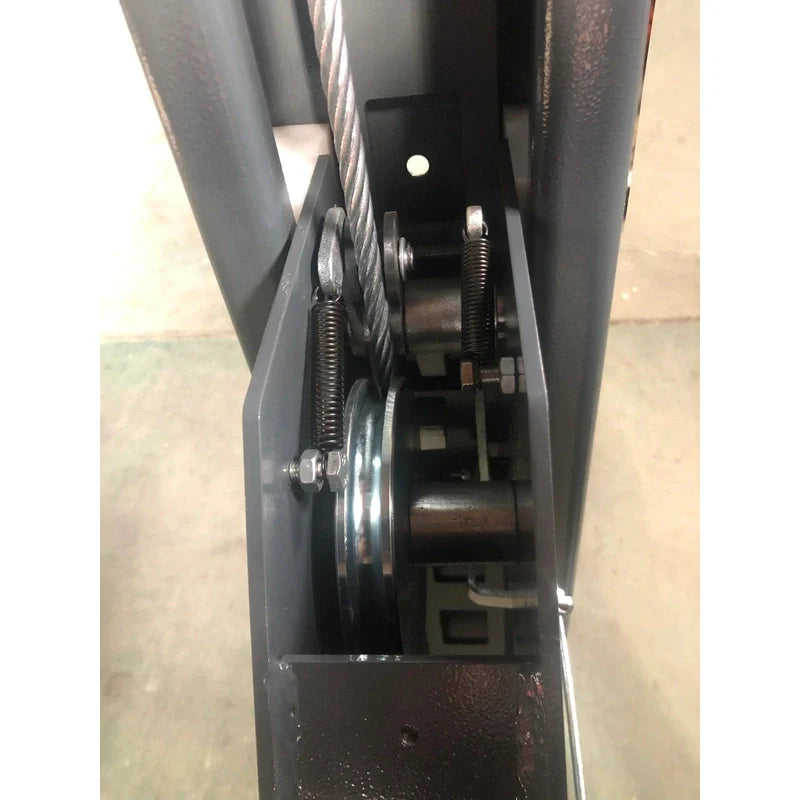

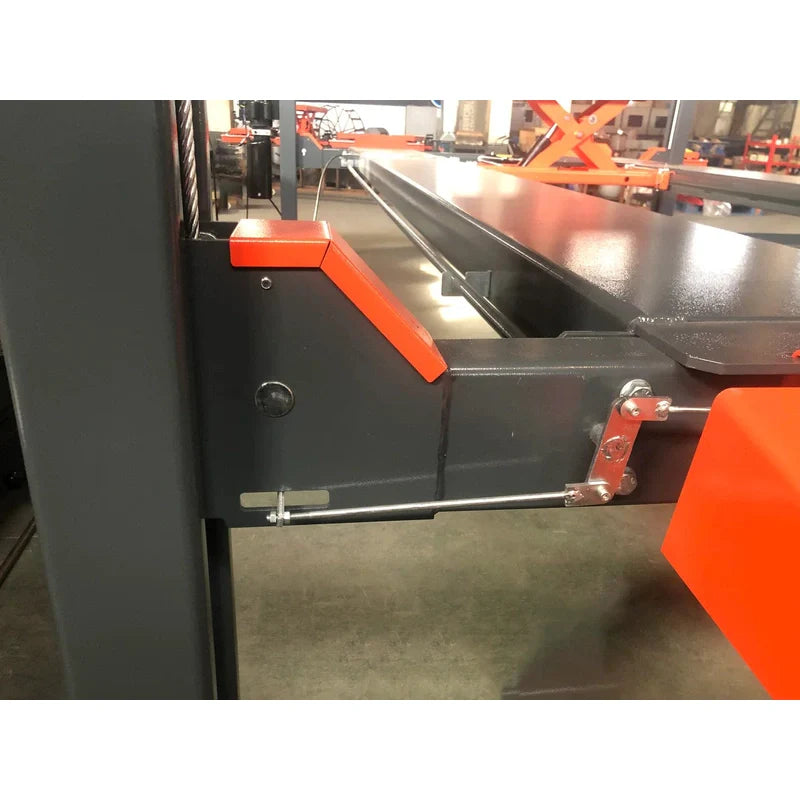

Four Mechanical Locking Devices: Each includes both primary and secondary safety locks for maximum operational security.
Power-Side Column: Allows flexible installation on either side, front, or rear, optimizing your workspace layout.
Non-Skid Coated Platforms: Ensure excellent traction and safety during use, with adjustable safety lock ladders for multiple height settings.

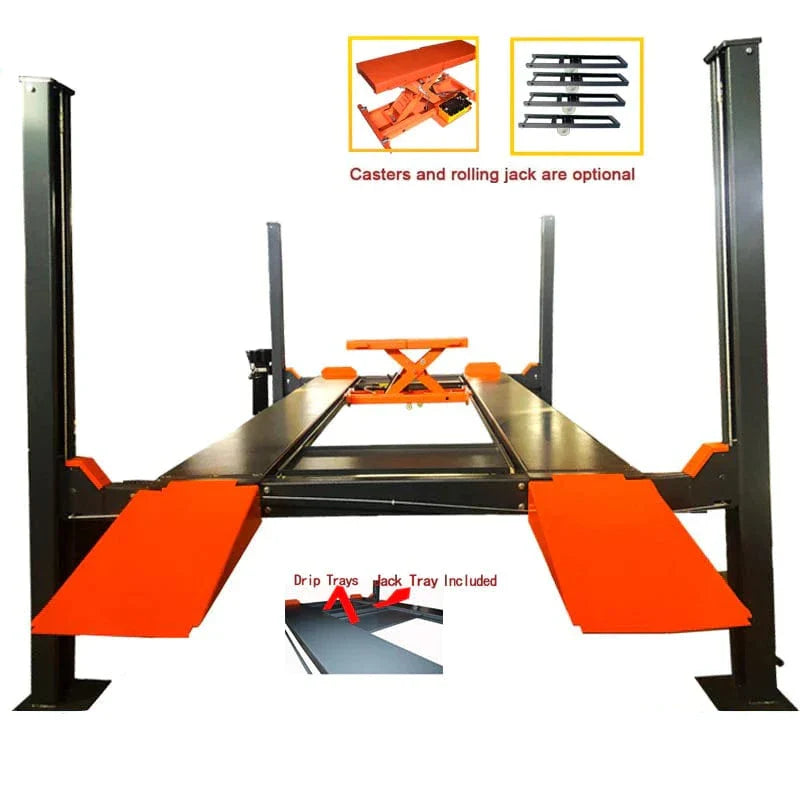

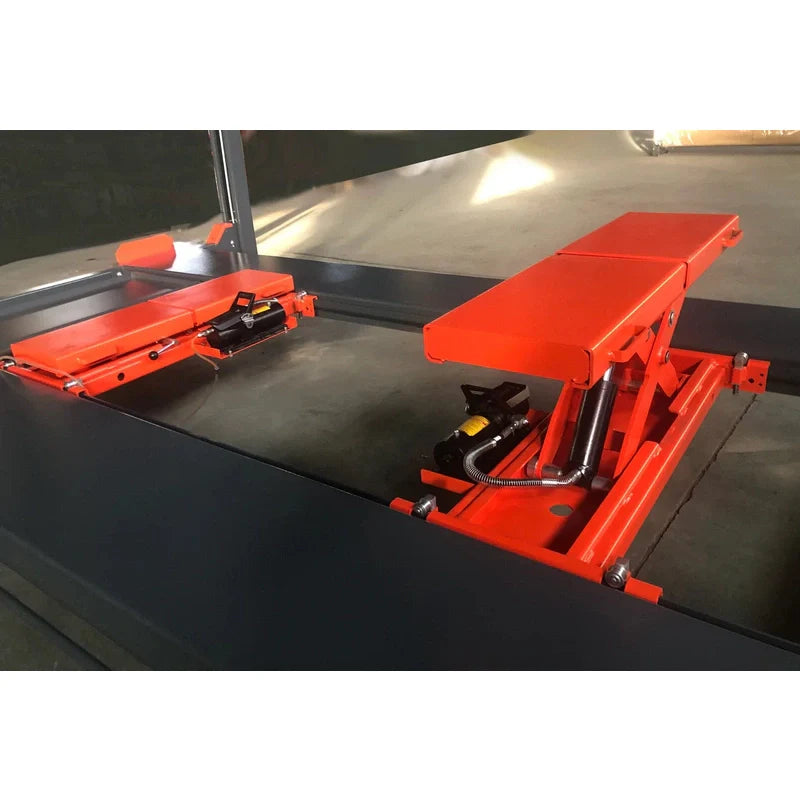

Optional Accessories: Compatible with caster kits for mobility and rolling jacks for added versatility (sold separately).
High-Performance Hydraulic System: Operates efficiently with 110V/60HZ/1PH power and is available with an optional 220V/60HZ/1PH configuration.
Convenience Features: Includes two drip trays and a jack tray for clean, organized, and efficient vehicle service.

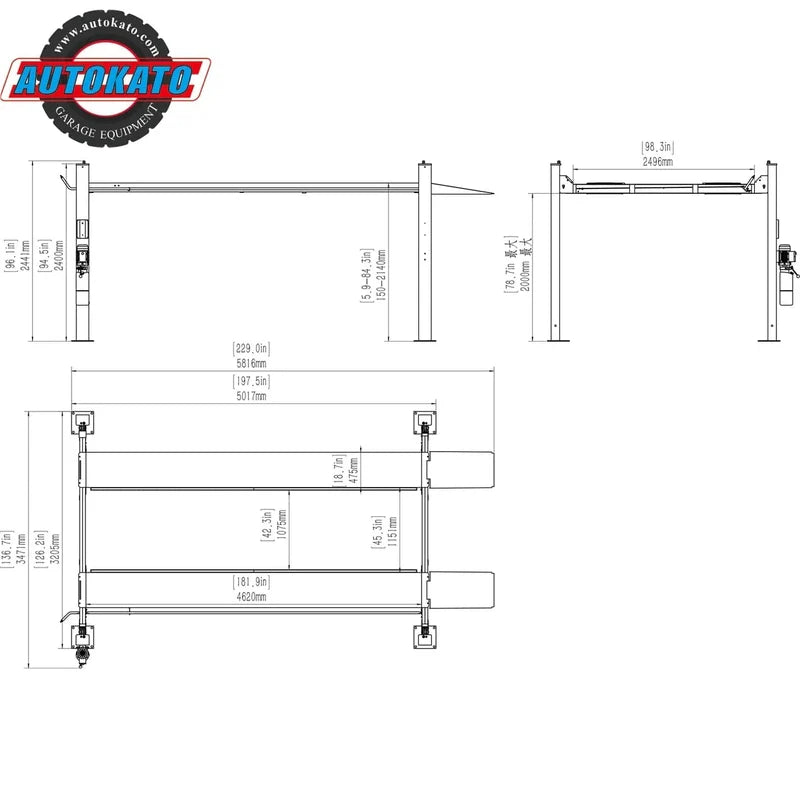

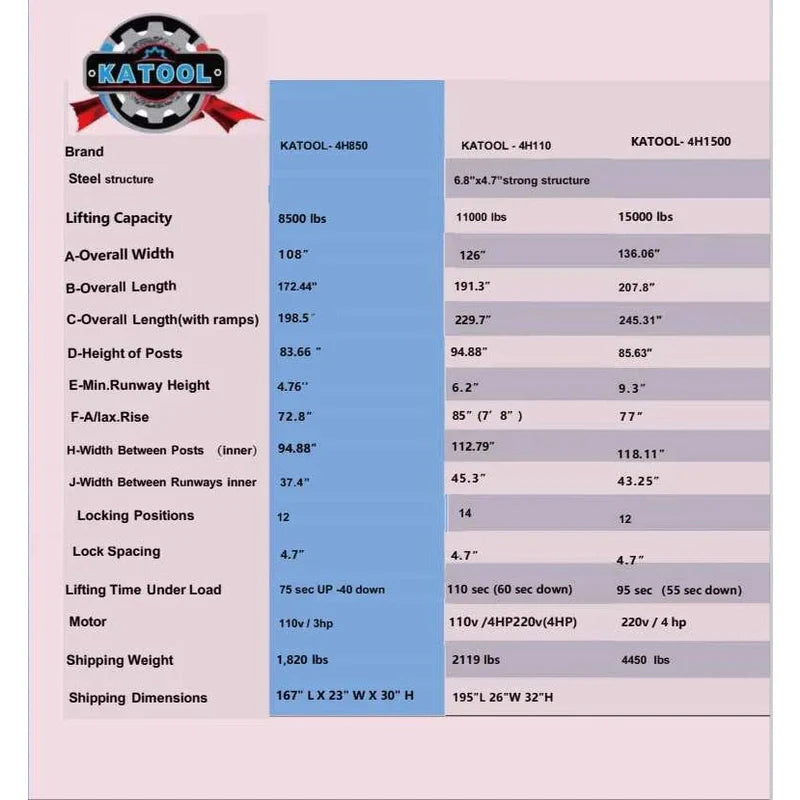

Specifications
SpecificationValue
| Lifting Capacity | 11,000 lbs (4,990 kg) |
| Max. Lifting Height | 84.25" (2,140 mm) |
| Lifting Time | 83s Up / 40s Down |
| Height of Posts | 94.88" (2,410 mm) |
| Width Overall | 126" (3,200 mm) |
| Length Overall | 229.73" (5,835 mm, with ramps) |
| Inside Columns | 112.81" (2,865 mm) |
| Min. Runway Height | 6.2" (157 mm) |
| Motor | 110VAC/60HZ/1PH |
| Net Weight | 2,116 lbs (960 kg) |
User Manual
For full installation details, operational instructions, and safety guidelines, please consult the Katool KT-4H110 User Manual.
Click the link below to download:
Installation
Installing the KT-4H110 is a simple and efficient process; however, meeting the proper concrete requirements is essential for safe operation. The installation surface must have a minimum concrete thickness of 3.93 inches (100 mm) with a compressive strength of at least 3,000 PSI.
Failure to meet these specifications may result in equipment instability, malfunction, or serious injury. Always verify your concrete conditions before installation to ensure safety and optimal performance.
Warranty
The Katool KT-4H110 comes with a 1-year limited warranty covering all parts and manufacturing defects. Additionally, all structural components of the lift are protected by an extended 3-year structural warranty. Customers may also purchase an optional 2-year extended warranty plan for added coverage.
Warranty Conditions:
All claims must be submitted within the active warranty period.
The warranty is non-transferable and applies only to the original purchaser.
