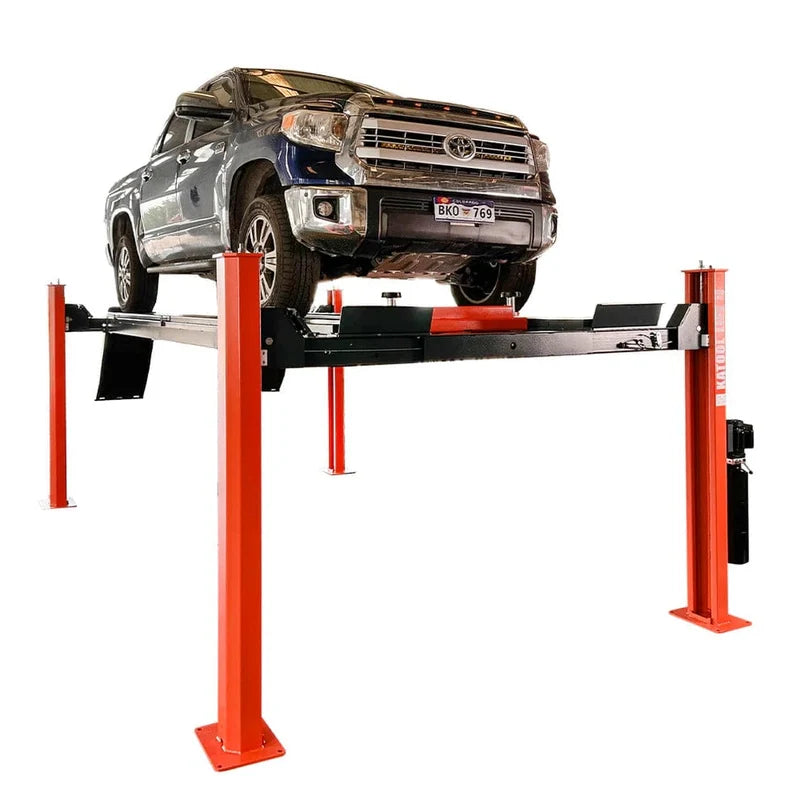

Katool KT-4H150 15,000lbs 4 Post Alignment Lift With Rolling Jack
USD 3,990
USD 5,700
Overview
The Katool KT-4H150 Heavy Duty 4-Post Alignment Lift delivers exceptional strength, stability, and precision — built to handle the most demanding alignment and lifting tasks. With an impressive 15,000 lbs lifting capacity and CE approval, it surpasses industry benchmarks, having passed 115% dynamic and 150% static load capacity tests. Engineered for durability and operator safety, this lift is the perfect choice for professional shops handling heavy-duty vehicles.
The KT-4H150 features a single-point manual safety lock release and four mechanical locking devices, each with primary and secondary safety locks, ensuring total control and peace of mind during every lift. Its non-skid diamond platforms, adjustable safety lock ladders, and optional turntables (available upon request) make it ideal for precise wheel alignment operations. The powerful 3KW hydraulic motor system, offered in 220V/60Hz/1PH or optional 110V/60Hz/1PH, ensures smooth, consistent performance. For added versatility, it also includes a 6,000 lbs rolling jack for secondary lifting applications.
Key Features
15,000 lbs Lifting Capacity: Designed to accommodate heavy-duty trucks and commercial vehicles.
CE Certified: Rigorously tested to meet 115% dynamic and 150% static load standards.

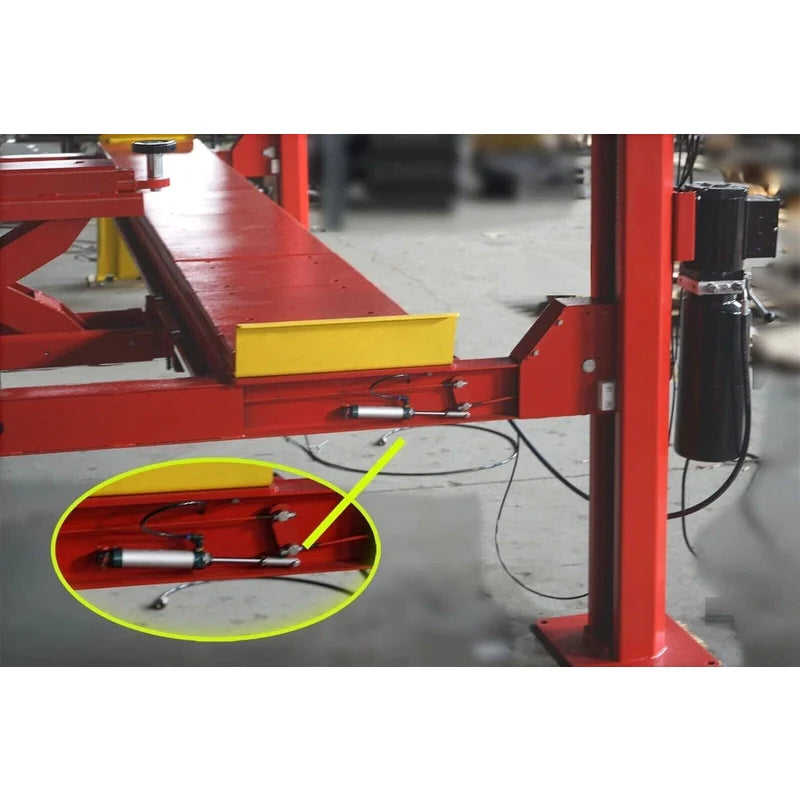

Single-Point Manual Safety Lock Release: Simplifies operation while maintaining full safety control.

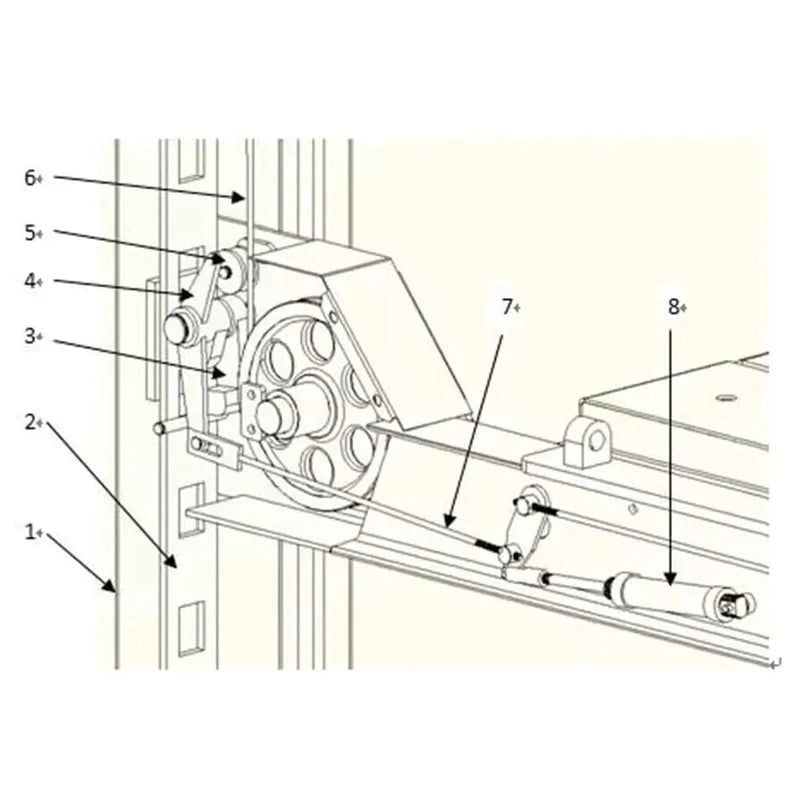

Four Mechanical Locking Devices: Each features dual (primary and secondary) locks for maximum security.

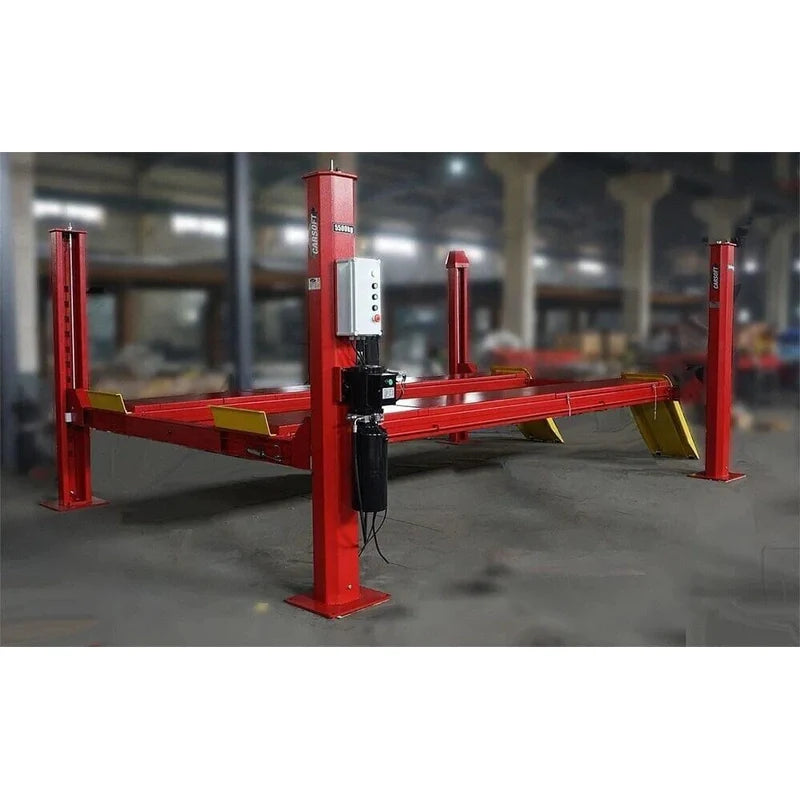

Flexible Power Column Placement: Install on either side, front, or rear to suit your workspace.

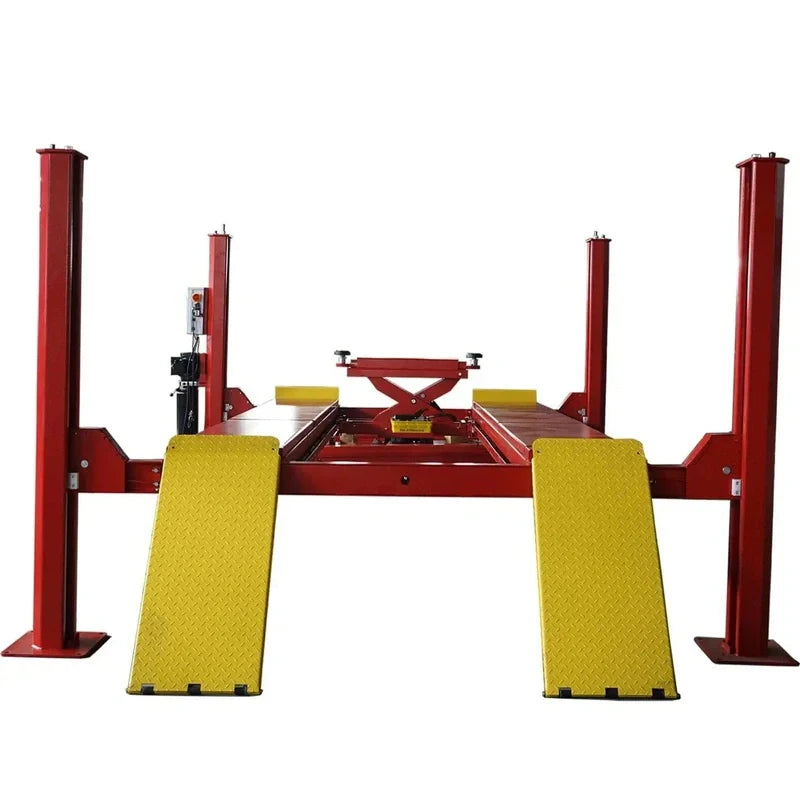

Non-Skid Diamond Platforms: Provides superior traction and safety during vehicle positioning.

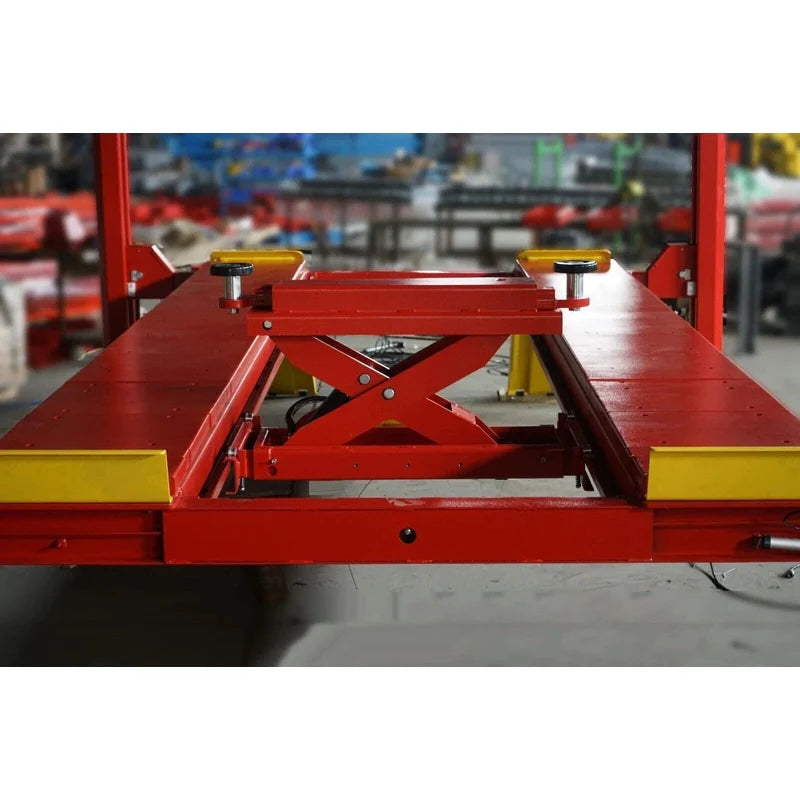

Included Rolling Jack: Comes with one 6,000 lbs rolling jack for flexible undercar service.
Optional Turntables for Alignment: Add precision wheel alignment capability (available upon request).

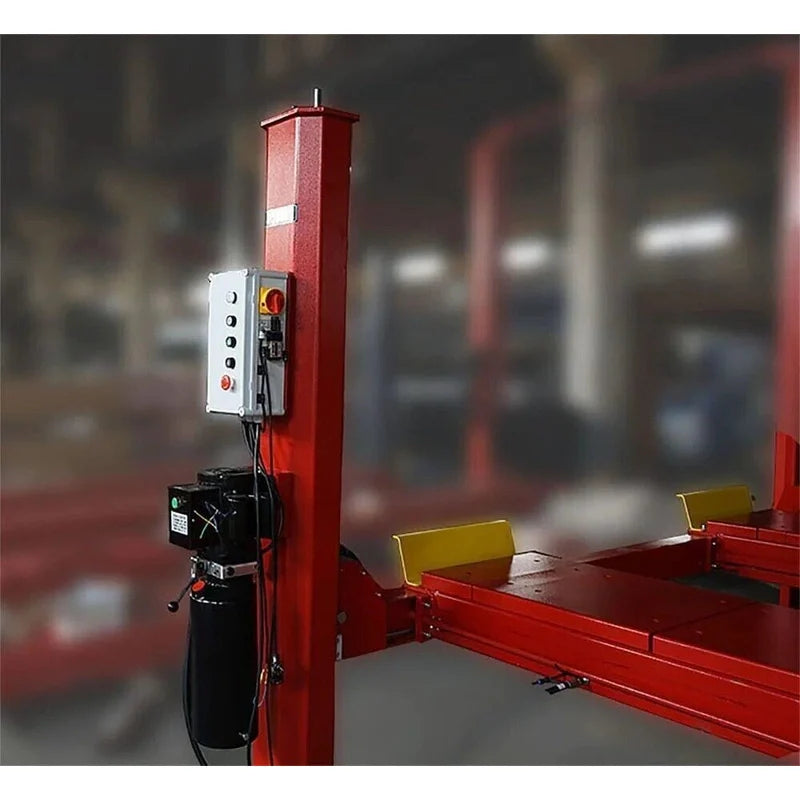

Premium Hydraulic System: Equipped with a 3KW motor, available in 220V/60Hz/1PHor 110V/60Hz/1PH configurations.

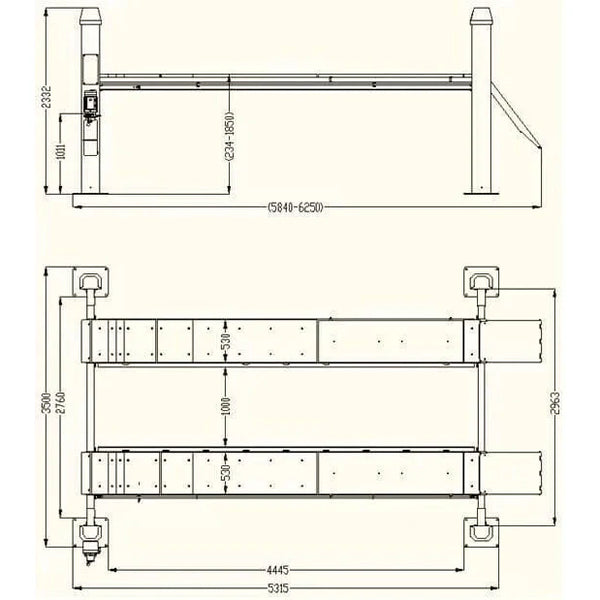

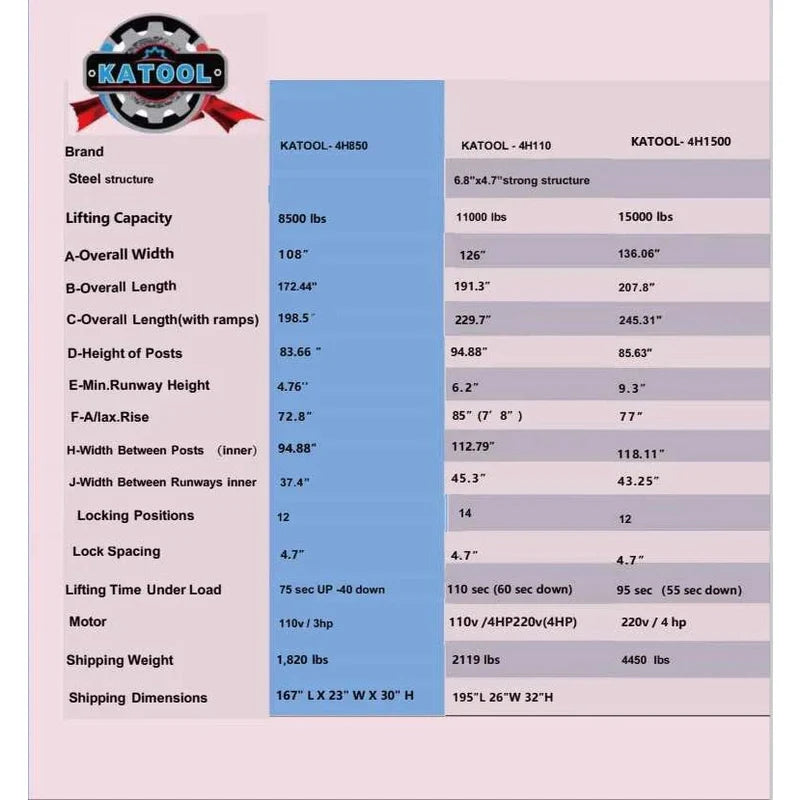

Specifications
SpecificationValue
| Lifting Capacity | 15,000 lbs (≈6,803 kg) |
| Max Lifting Height | 92.52" (2,350 mm) |
| Lifting Time | 95s (Up) / 55s (Down) |
| Height of Posts | 85.63" (2,175 mm) |
| Overall Width | 136.06" (3,456 mm) |
| Overall Length (with ramps) | 245.31" (6,231 mm) |
| Inside Columns | 118.11" (3,000 mm) |
| Minimum Runway Height | 9.3" (236 mm) |
| Motor | 3KW, 220V/60Hz/1PH (Optional 110V/60Hz/1PH) |
| Net Weight | 4,850 lbs (2,200 kg) |
